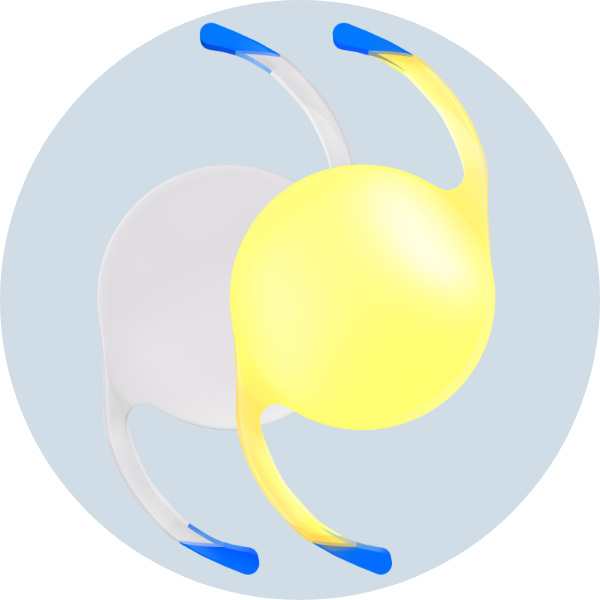

iSert® IOL
Spec Sheet
| iSert® | |||||||
| Model name | iSert® 255 | iSert® 254 | iSert® 251 | iSert® 250 | iSert® 151 | iSert® 150 | |
| Optic design | Aspheric lens design, aberration correcting | Spherical lens design | |||||
| Specification | UV and blue light filter | UV filter | UV and blue light filter | UV filter | UV and blue light filter | UV filter | |
| Optic material | Hydrophobic acrylic (AF-1) | ||||||
| Manufacturing | Lathe-cut and pad polished | ||||||
| Haptic material | Hydrophobic acrylic with blue PMMA chemically bonded haptic tips | ||||||
| Haptic configuration | Modified C-loop, 5° angulation | ||||||
| Dimension (Optic/OAL) | 6.0 mm / 12.5 mm | ||||||
| Power | +6.00 to +30.00 D (in 0.50 D increment) | ||||||
| Nominal A-constant* | 118.4 | ||||||
| Optimized constants† | Haigis | a0 = -0.542 | a1 = 0.161 | a2 = 0.204 | |||
| Hoffer Q | pACD = 5.30 | ||||||
| Holladay 1 | SF = 1.52 | ||||||
| SRK/T | A = 118.5 | ||||||
| Front injector tip outer | 1.78 mm | 1.82 mm | 1.93 mm | ||||
| Injector | iSert® preloaded | ||||||
*The A-Constant is presented as a starting point for the lens power calculation. When calculating the exact lens power, it is recommended that calculations be performed individually, based on the equipment used and operating surgeon’s own experience.
†These optimized constants for the calculation of intraocular lens power published by ULIB on their website: http://ocusoft.de/ulib/c1.htm are calculated from 319 clinical results for model 250/251 as of October 31, 2016. These constants are based on actual surgical data and are provided by ULIB as a starting point for individual constant optimizations. The information available on the website is based on data originating from other users and not by HOYA Surgical Optics (HSO). HSO therefore does not warrant the correctness, completeness and currentness of the contents on the said website.
Information contained is intended for health care professionals. For a full list of indications and contra indications please refer to the Instructions For Use. Some of the products and/or specific features as well as the procedures featured in this document may not be approved in your country and thus may not be available there. Please contact our regional representative regarding individual availability in your country. HOYA and iSert are trademarks of the HOYA Corporation or its affiliates. ©2023 HOYA Medical Singapore Pte. Ltd. All rights reserved.
- Data on file. HOYA Medical Singapore Pte. Ltd. 2018.
Why surgeons trust iSert®
Proven hydrophobic acrylic lens material:
over 10 million units implanted worldwide, over 20 years1
